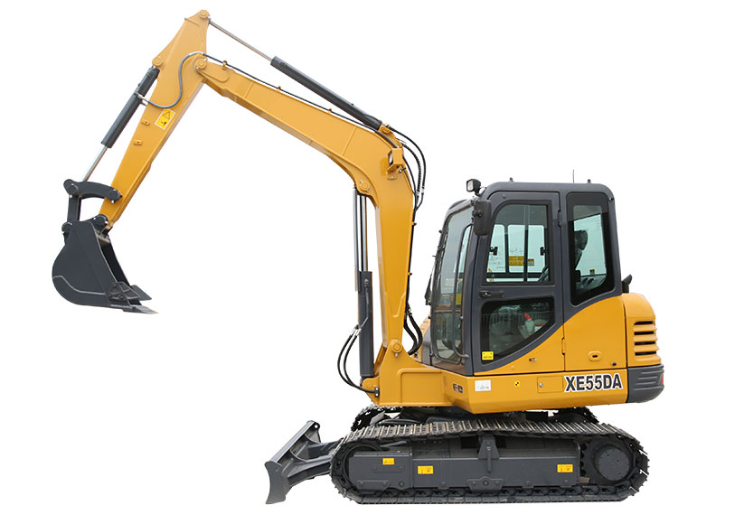

XE55DA hydraulic excavator
Product Description
The excavator with short-tail design can apply to the narrow work conditions. The engine powertrain is featured with stable torque output, low fuel consumption and low noise. The load hydraulic sensitive system allows for improved maneuverability of compound actions, faster response speed, accurate control and small impact.
Strengthen the local area of boom and arm bearing high stress, and meanwhile adjust the structure, disperse stress and improve the service life; standard new-type bucket and reduced bucket depth make unloading quicker and faster.It is easy to achieve fine work such as flat land.
It is widely used in small earth and stone works, municipal construction, road repair, concrete crushing, buried cables, farmland water conservancy construction, garden cultivation and river channel dredging.
More energy efficient and environmental protection
Adopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consumption, high operating efficiency, reliability and durability. Adopt large displacement main pump with large low and high pressure-withstanding value, which can guarantee that the machine has smooth operation and high digging efficiency.
More reliable and durable
Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
More comfortable and safe
Humanized detail design, all the control components inside the cab are arranged scientifically and reasonably according to ergonomics theory. Cup holder, standby power, magazine bag, storage box and other humanized configurations are added to improve the convenience and comfort of operation to the most extent.
Basic Information
| Model NO. | XE55DA | Type | Crawler Excavator |
| Transmission | Hydraulic Transmission | Bucket Capacity | 0.21m3 |
| Certification | CE | Condition | New |
| Transport Package | Nude Package | Specification | 5750 kg |
| Trademark | China Top 1 Brand | Origin | Xuzhou, Jiangsu, China |
| HS Code | 84295212 | Production Capacity | 1000 Units/Month |
Packaging & Delivery
| Package Size | 586.00cm * 192.00cm * 260.00cm |
| Package Gross Weight | 5750.000kg |
Product Parameters
| Model | Unit | XE55DA |
| Operating weight(without dozer blade) | Kg | 5750 |
| Bucket capacity | m³ | 0.21 |
| Engine | Engine Model | / | Kubota V2607 |
| No. of cylinders | / | 4 |
| Rated power/speed | kw/rpm | 35/2200 |
| Maximum torque/speed | N.m | 171.50/1300 |
| Displacement | L | 2.615 |
| Main performance | Travel speed(H/L) | km/h | 4.2/2.2 |
| Rotating speed | r/min | 10 |
| Gradeability | ° | ≤35 |
| Ground pressure | kPa | 31 |
| Bucket digging force | kN | 48.3 |
| Arm digging force | kN | 32.5 |
| Maximum tractive force | kN | 50.5 |
| | Rated flow of main pump | L/min | 150 |
| Main safety valve pressure | MPa | 24.5 |
| Travel system pressure | MPa | 24 |
| Swing system pressure | MPa | 23 |
| Pilot system pressure | MPa | 3.5 |
| Appearance size | Overall length | mm | 5860 |
| Overall width | mm | 1920 |
| Overall height | mm | 2585 |
| Width of platform | mm | 1780 |
| Track length | mm | 1920 |
| Total width of chassis | mm | 400 |
| Track gauge | mm | 1500 |
| Counterweight clearance | mm | 700 |
| ground clearance | mm | 385 |
| Standard | Length of boom | mm | 3000 |
| Length of arm | mm | 1600 |
| Bucket capacity | m³ | 0.21 |
Packaging and shipping
1. Containers are the cheapest and fastest
2. Bulk carriers are better for large construction equipment
3. Flat rack is better for large construction equipment and does not need to be disassembled
4.RoRo ships are fast and good for all kinds of machines
You can choose any transportation according to your needs
5. FOB, CRF and CIF are all acceptable.
We can ship the machine in bulk as a whole, or we can load it in a container and disassemble it on some parts of the machine, or we can ship it on a flat rack. We can choose the way according to your requirements.
Packaging details: Packaging will be as per customer requirements
Delivery time: 2 working days
Experienced international trade team provides the best full set of services
our service
1) Original parts and good working condition;
2) Low working hours and high work efficiency;
3) Strong work motivation and good stability;
4) Complete accessories and no oil leakage;
5) Competitive price and good skills;
6) Good after-sales service
We hope you can give us the opportunity to negotiate with you by email or phone, or come to Shanghai face to face, we are honored to contact you and serve you, and we promise to provide you with the best prices and services:
1) Book a hotel for you
2) Pick you up at the airport
3) Freely translate for you and guide you when you are free
4) 6 months to 1 year product and after-sales service warranty
1. How to guarantee the condition and lifetime of the machine ?
A: We choose good condtion and less hour used machines. We are available for third part certificate of all of the machines.
And they are all available for your inspection in its place.
2. How to have after sale service from us ?
A: We have old suppliers in China, used or new parts are available for us to get, with reasonable price and in short time.
3. How can customers make visit and checking in China ?
A: We arrange everything ready for your jouney in China, welcome your happy visit!~
Product Tags:
|
|
XE55DA Hydraulic Excavator 130 L Hydraulic Oil Tank 1300mm Milling Width For Construction Projects Images
|
