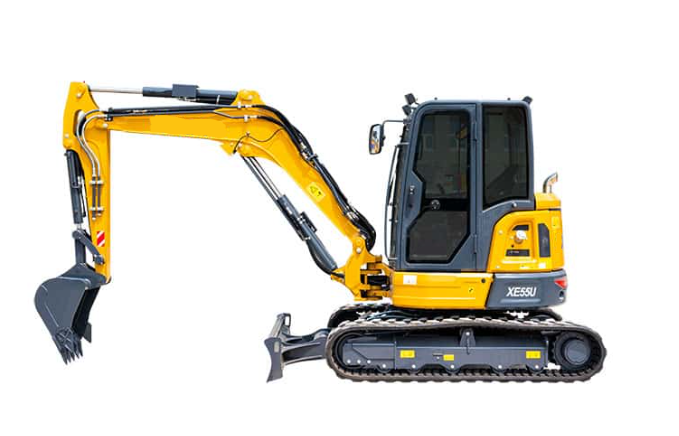

XE55U hydraulic excavator
Product Description
The hydraulic control and electric control are dynamically integrated with the adoption of load self-adaptation control technology, the load follows the engine power in real time, making full use of each drop of fuel. The fuel is saved by 9% in E mode and the efficiency is increased by 22% in P mode.
The no-tail design with small slewing radius is adopted, the left and right angle of deflection of the working device is respectively 75° and 50°, it can realize complex operation together with superstructure slewing to realize the digging operation parallel with wall surface in narrow and small space through the cooperation of superstructure slewing so as to easily deal with various operating conditions.
The bulldozing deflection can increase operating methods in the narrow lanes, and the blade can be deflected by 25° respectively to the left and right.
One set of high pressure quick change pipeline, two sets of standby pipelines with adjustable flow, more selections of machines and tools are provided, the adjustable flow control make users' operation more comfortable.
Basic Information
| Model NO. | XE55U | Type | Crawler Excavator |
| Usage | GM Excavator | Bucket | Backhoe |
| Transmission | Hydraulic Transmission | Bucket Capacity | 0.21m3 |
| Size | Small-Scale | Certification | CE |
| Condition | New | Transport Package | Nude Package |
| Specification | 5700 kg | Trademark | China Top 1 Brand |
| Origin | Xuzhou, Jiangsu, China | HS Code | 84295212 |
| Production Capacity | 1000 Units/Month | | |
Packaging & Delivery
| Package Size | 565.00cm * 364.00cm * 295.00cm |
| Package Gross Weight | 5700.000kg |
Product Parameters
| Model | Unit | XE55U |
| Operating weight | Kg | 5700 |
| Bucket capacity | m³ | 0.16 |
|
Main performance
| Travel speed | km/h | 4.6/2.8 |
| Swing speed | r/min | 9.5 |
| Gradeability | ° | ≤35 |
| Ground pressure | kPa | 32 |
| Bucket digging force | kN | 44.5 |
| Arm digging force | kN | 24.3 |
| Maximum traction | kN | 52.8 |
|
Hydraulic
system
| Rated flow of main pump | L/min | 158.4 |
| Main safety valve pressure | MPa | 30 |
| Travel system pressure | MPa | 30 |
| Swing system pressure | MPa | 24 |
| Pilot system pressure | MPa | 3.5 |
|
Working
scope
| A Max. digging height | mm | 5650 |
| B Max. dumping height | mm | 4010 |
| C Max. digging depth | mm | 3640 |
| D 40mm(8 ft) level bottom | mm | 3200 |
| E Max. vertical wall digging depth | mm | 2690 |
| F Max. digging radius | mm | 6110 |
| G Min. swing radius | mm | 1040 |
Packaging and shipping
1. Containers are the cheapest and fastest
2. Bulk carriers are better for large construction equipment
3. Flat rack is better for large construction equipment and does not need to be disassembled
4.RoRo ships are fast and good for all kinds of machines
You can choose any transportation according to your needs
5. FOB, CRF and CIF are all acceptable.
We can ship the machine in bulk as a whole, or we can load it in a container and disassemble it on some parts of the machine, or we can ship it on a flat rack. We can choose the way according to your requirements.
Packaging details: Packaging will be as per customer requirements
Delivery time: 2 working days
Experienced international trade team provides the best full set of services
our service
1) Original parts and good working condition;
2) Low working hours and high work efficiency;
3) Strong work motivation and good stability;
4) Complete accessories and no oil leakage;
5) Competitive price and good skills;
6) Good after-sales service
We hope you can give us the opportunity to negotiate with you by email or phone, or come to Shanghai face to face, we are honored to contact you and serve you, and we promise to provide you with the best prices and services:
1) Book a hotel for you
2) Pick you up at the airport
3) Freely translate for you and guide you when you are free
4) 6 months to 1 year product and after-sales service warranty
1. How to guarantee the condition and lifetime of the machine ?
A: We choose good condtion and less hour used machines. We are available for third part certificate of all of the machines.
And they are all available for your inspection in its place.
2. How to have after sale service from us ?
A: We have old suppliers in China, used or new parts are available for us to get, with reasonable price and in short time.
3. How can customers make visit and checking in China ?
A: We arrange everything ready for your jouney in China, welcome your happy visit!~
